What is EDOstructure

With EDOstructure you can digitally model the development process of your TFP component.

Unique functions:

From 3D to 2D

Processing of 3D CAD shell geometries for 2D pattern data generation for the TFP process

TFP simulation analysis

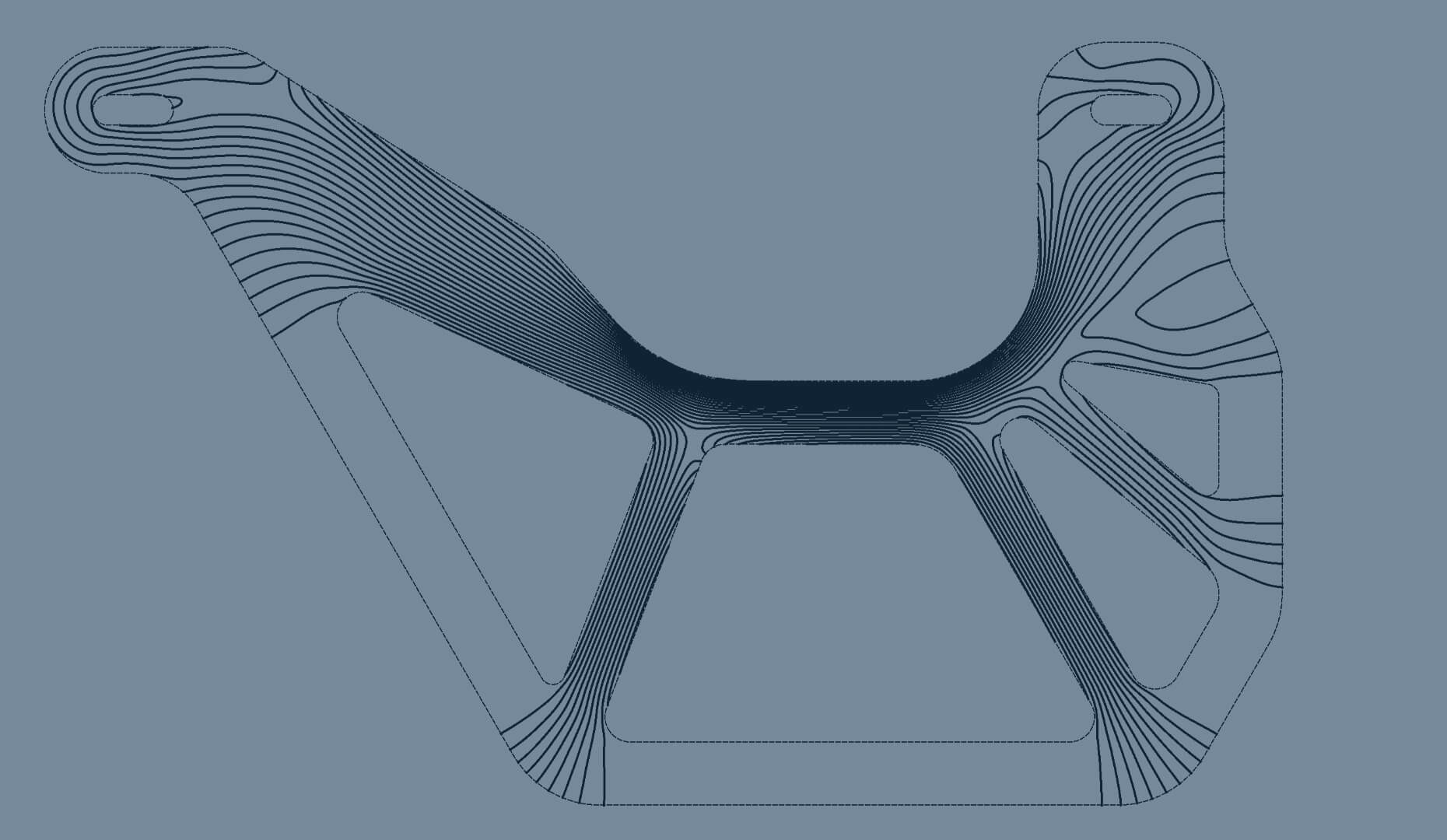

Import and analysis of numerically simulated stress conditions as well as automated derivation of possible TFP fiber patterns, including those based on principal stresses with and without specific manufacturing parameters


Export/import of generated pattern data in DXF format

Simulation models

Easy creation of production-compliant, complex numerical simulation models and their export for various FEA solver formats

Additional applications

As well as many other functionalities

Contact us

We look forward to hearing from you. Please feel free to reach out to us with any questions or inquiries.
